Saw grit diamond

Place of Origin:	Zhengzhou China (Mainland)
Brand Name:	Harmony
Production method:	High pressure high temperature
Size:	18/20 - 325/400
Color:	Yellow
MoQ:	1000 carats
Application:	Used in diamond tools for cutting and ginding
Packaging:	Plastic bag/bottle, carton
HS Code:	71051020.00
OEM/ODM:	Size tailored

Inquiry Now Send E-mail

Description

H.I.D. Saw Grit include HID90 & HID80 series. It has complete specifications, various sizes and grades. They are able to produce variety tools for stone, construction and mining industries.
The diamond grit particle character (size, strength, crystallinity) plays a major role in understanding the behaviour of grit application. All have stable quality and are able to meet different requirements from customers.

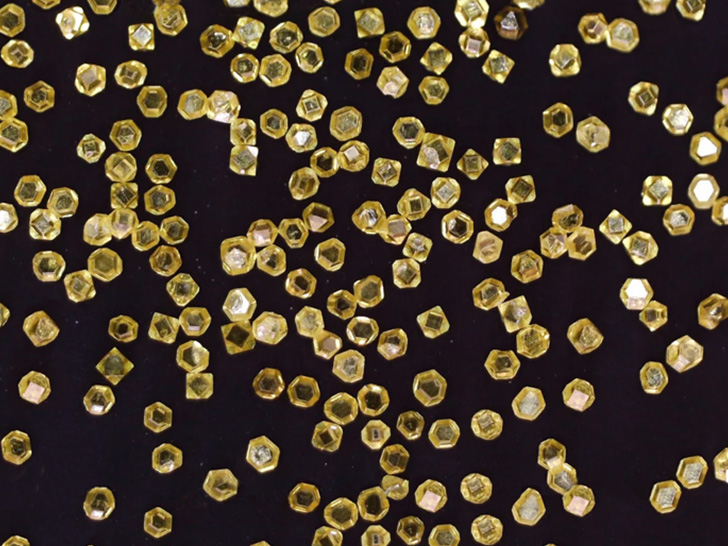

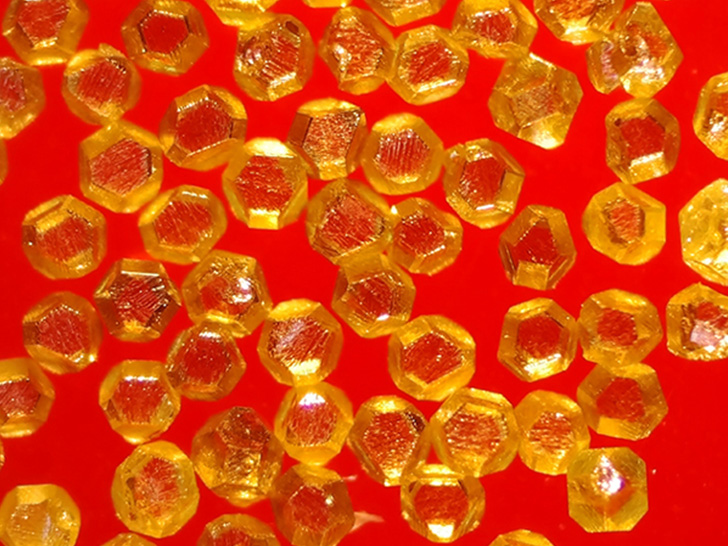

Saw Grit Diamond

Grade	Type	Description	Application
HID990		Regular and complete crystal shape High impact strength Thermal stability Tiny impurities Good wear resistance	High grade cutting tools Revising tools Geological drills Saw blades Electroplated grinding wheels grade Cutting tools
HID980		Regular and complete crystal shape High impact strength Thermal stability Good transparency Good wear resistance	Diamond tools Concrete engineering drill Wire saw Electroplated products
HID960		Comparatively regular and complete crystal shape Comparatively good impact strength Thermal stability High mechanic Good wear resistance Good sharpness	Saw blades of high and medium load Wire saw Grinding wheel
HID940		Comparatively regular and complete crystal shape Normal impact strength Thermal stability Good wear resistance Good sharpness	Cutting tools with medium load No reinforced concrete pavement Roller Grinding wheel
HID920		Regular shape and comparatively complete crystal shape Normal impact strength Thermal stability Good sharpness	Cutting Grinding wheels Cutting tools with medium and low load

Available sizes:

Series	Size Grade	18/20	20/25	25/30	30/35	35/40	40/45	45/50	50/60	60/70	70/80
Series	Size Grade	D1001	D851	D711	D601	D501	D425	D356	D301	D251	D213
HID90	HID990	√	√	√	√	√	√	√	√	√	√
	HID980	√	√	√	√	√	√	√	√	√	√
	HID960	√	√	√	√	√	√	√	√	√	√
	HID940	√	√	√	√	√	√	√	√	√	√
	HID930	√	√	√	√	√	√	√	√	√	√
	DID920	√	√	√	√	√	√	√	√	√	√
	HID910	√	√	√	√	√	√	√	√	√	√

Series	Size Grade	80/100	100/120	120/140	140/170	170/200	200/230	230/270	270/325	325/400
		80/100	100/120	120/140	140/170	170/200	200/230	230/270	270/325	325/400
		D181	D151	D126	D107	D91	D76	D64	D54	D46
HID80	HID890	√	√	√	√	√	√	√	√	√
	HID880	√	√	√	√	√	√	√	√	√
	HID860	√	√	√	√	√	√	√	√	√
	HID840	√	√	√	√	√	√	√	√	√
	HID830	√	√	√	√	√	√	√	√	√
	HID820	√	√	√	√	√	√	√	√	√
	HID810	√	√	√	√	√	√	√	√	√

Related Products:

Nanodiamond powders

Our nano diamond is formed with tiny crystals that are no more than 20nm. Special detonative synthetic condition produces sphere shaped diamond with rich functional group

Polycrystalline diamond

Our polycrystalline diamond is produced by detonation with high energy explosive, the high explosive heat and high detonating pressure change the graphite into poly diamond, and its structure is similar to natural carbonado diamond.

Resin bond diamond

Light green color, blocky, the most tough product among BRD series. Widely used for heavy duty application demanding long wheel life.

Coated diamond

Nickel coating greatly enhances the retention between diamond particles and the bond, thus to prolong the tool's life and improve the sharpeness,which offers a better performance.

Spherical diamond

Raw material is high grade MBD series of high quality diamond, the shape is almost spherical /round, strictly narrow particle size distribution, tiny impurities (inner and outer); better dispersion and high wear-resistence, easy to disperse to various types of vector and combined with various binders solidly.

Micron diamond

More regular crystal shape with patented technology process, nearly spherical particle shape, more concentrated particle size distribution and low impurity content, very clean particle surface, easy to disperse to various types of vector and combined with various binders solidly.
