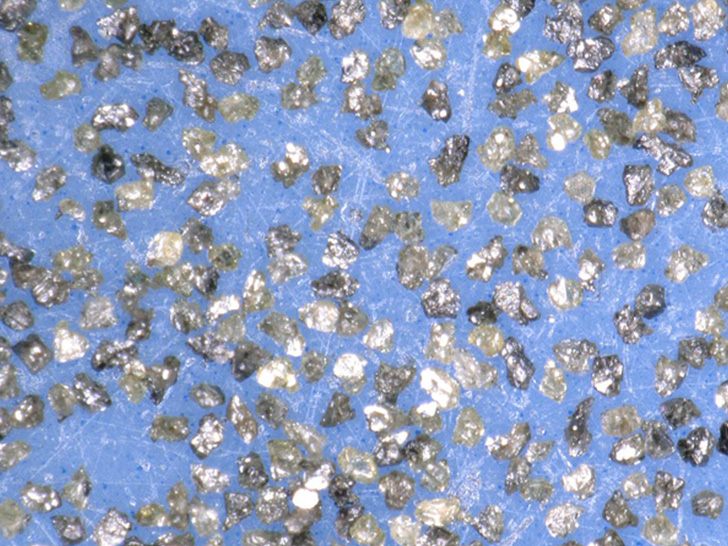

Resin bond diamond

Place of Origin:	Zhengzhou China (Mainland)
Brand Name:	Harmony
Production method:	High pressure high temperature
Size:	Micron 0.05um-60um, Mesh 60/70 to 325/400
Color:	Light green, dark green and light grey
MoQ:	5000 carats
Application:	Mainly used in diamond grinding wheels, diamond pad, etc.
Packaging:	Plastic bag/bottle, carton
HS Code:	71051020.00
OEM/ODM:	Size tailored

Inquiry Now Send E-mail

BRD10

Light green color, blocky, the most tough product among BRD series. Widely used for heavy duty application demanding long wheel life.

BRD20

Dark green color, medium tough and micro-friable multinano-crystal, irregular sharp, perfect self sharpen ability. Best choice for maintaining grinding performance and tool life.

BRD30

Light gray color, medium tough and micro-friable multinano-crystal, lower toughness but more friable than BRD20, good self sharpen ability. Economy grade to improve the efficiency.

BRD-Ni

BRD Nickel Coating Series: With exclusive technology we do chemical nickel coating of different levels based on BRD series. (Standard levels of nickel coating by weight are 30%, 56% and 60%.) The coating provides excellent heat dissipation and increased particle retention in the bond system, thus improving wheel life and workpiece integrity.

BRM Micron

Resin bond diamond micron powder with light gray color, blocky shape, friable, multicrystalline struture. Size distribution and shape are controlled tightly. BRM offers excellent performances in polishing and lapping glass, ceramics etc.

Available sizes:

US Mesh (FEPA)

40/50 (B427)

50/60 (B301)

60/80 (B252)

80/100 (B181)

100/120 (B151)

120/140 (B126)

140/170 (B107)

170/200 (B91)

200/230 (B76)

230/270 (B64)

270/325 (B54)

325/400 (B46)

BRD10

√

BRD20

√

BRD30

√

BRM-Ni

When customers use micron powder for special application, then usually ask for nickel coatings on micron powder. Since particles are very little, the agglomeration will be happened during the coating and then affects performance. Our nickel coating technology solved this problem to avoid the agglomeration.

Related Products:

Nanodiamond powder

Our nano diamond is formed with tiny crystals that are no more than 20nm. Special detonative synthetic condition produces sphere shaped diamond with rich functional group

Polycrystalline diamond

Our polycrystalline diamond is produced by detonation with high energy explosive, the high explosive heat and high detonating pressure change the graphite into poly diamond, and its structure is similar to natural carbonado diamond.

Resin bond diamond

Light green color, blocky, the most tough product among BRD series. Widely used for heavy duty application demanding long wheel life.

Coated diamond

Nickel coating greatly enhances the retention between diamond particles and the bond, thus to prolong the tool's life and improve the sharpeness,which offers a better performance.

Spherical diamond

Raw material is high grade MBD series of high quality diamond, the shape is almost spherical /round, strictly narrow particle size distribution, tiny impurities (inner and outer); better dispersion and high wear-resistence, easy to disperse to various types of vector and combined with various binders solidly.

Micron diamond

More regular crystal shape with patented technology process, nearly spherical particle shape, more concentrated particle size distribution and low impurity content, very clean particle surface, easy to disperse to various types of vector and combined with various binders solidly.

Saw grit diamond

H.I.D. Saw Grit include HID90 & HID80 series. It has complete specifications, various sizes and grades. They are able to produce variety tools for stone, construction and mining industries.
